    mining wire mesh vibrating screen mesh for stone crusher Australia Market

    Ask Lasest Price
    Brand Name : LN
    Model Number : Crimped Wire Mesh
    Certification : SGS,FORM E,ISO,FORM A,SGS/ISO
    Price : 1.88$/m2
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10000 sqm per week
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    mining wire mesh vibrating screen mesh for stone crusher Australia Market

    Vibrating Screen Mesh is available in different wire diameters, mesh opening and open area. This is widely used for various applications such as screening, sizing, grading, shifting, separating, scalping and washing. This wire mesh can be also custom designed in case plungers and vibrating rods are needed to insert for protection against tearing. It is installed above rubber beads to avoid metal to metal contacts.

    Name
    Vibrating Screen Mesh
    High carbon steel:
    65Mn,45#,50#,55#,60#,70#,,72A
    Wire diameter
    0.8mm-12.7mm,Our finished wire is inspected by third party SGS,Tolerance+_0.03mm .
    Aperture/Opening
    2mm to 100mm,tolerance +-3%

    Weaving style:
    Plain weave Double crimped Intermediate crimped Flat top crimped

    mining wire mesh vibrating screen mesh for stone crusher Australia Market

    Features:

    1.No tearing and abrasion 2.Placed above rubber beads to avoid metal to metal contact

    3.Corrosion resistance 4. High temperature resistance

    IMPORTANT FACTS TO CONSIDER WHEN ORDERING SCREENS:

    When screens form part of the manufacturing process, the profits will depend on the specification of the screens which must be chosen to give optimum performance. The specification of the screen best suited to the screening operation depends on:

    The screen selected must achieve a compromise amongst these factors.

    When ordering screens the following technical aspects should be taken into account :

    Thickness of wire

    Thick wire will last longer than thin wire, but will give a smaller open area and will therefore pass less material per unit area.

    mining wire mesh vibrating screen mesh for stone crusher Australia Market

    Open Area

    This is the most important factor in obtaining maximum output. The larger the open area the less screen is wasted and the faster the speed of screening. This open area factor must balanced against the wire diameter to give adequate life

    Mesh

    The mesh refers to the number of openings per inch. The mesh is counted by starting from the centre of one wire and counting the number of opening to a point one inch away.

    mining wire mesh vibrating screen mesh for stone crusher Australia Market

    OEM/ODM Accept the following types of customization with Polyurethane collocation

    mining wire mesh vibrating screen mesh for stone crusher Australia Market
    mining wire mesh vibrating screen mesh for stone crusher Australia Market

    Aperture or Opening Width

    This is the actual opening between the wires , and is also referred to as space. Thus 10mm aperture , 4mm wire ,means the wires are 10mm apart , and the diameter of wire is 4mm

    mining wire mesh vibrating screen mesh for stone crusher Australia Market

    Pre –Crimped Wire Screens
    ( Wire Crimped before weaving )
    These are generally used for 10 mesh and coarser . Pre –crimped wire screens have very accurate opening and are tightly woven. The wires have very little movement, resulting in:
    Pre-crimped wire screens are generally preferred when accurate sizing is important and for vibrating screens where tightness is important.

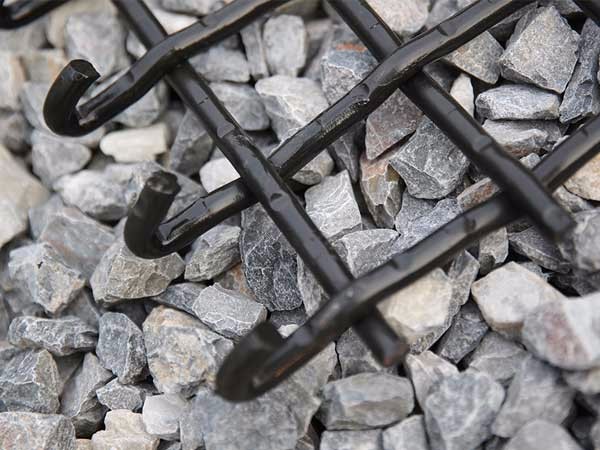

    Hooks and Hooks Strips on Vibrating Screens

    mining wire mesh vibrating screen mesh for stone crusher Australia Market
    mining wire mesh vibrating screen mesh for stone crusher Australia Market
    Products Show
    mining wire mesh vibrating screen mesh for stone crusher Australia Market
    mining wire mesh vibrating screen mesh for stone crusher Australia Market
    mining wire mesh vibrating screen mesh for stone crusher Australia Market
    mining wire mesh vibrating screen mesh for stone crusher Australia Market
    mining wire mesh vibrating screen mesh for stone crusher Australia Market

    Stainless parameters

    NO
    Grade
    chemical Composition
    C
    Ni
    Mn
    Cr
    1
    304
    ≤0.08
    8.0-11.0
    ≤2.0
    18.0-20.0
    2
    321
    ≤0.08
    9.0-12.0
    ≤2.0
    17.0-19.0
    3
    316
    ≤0.08
    10.0-14.0
    ≤2.0
    16.0-18.5
    4
    2205
    ≤0.03
    4.5-6.5
    2.5-3.5
    21.0-24.0
    5
    2507
    ≤0.03
    6-8
    ≤1.2
    24-26

    Carbon steel parameter:

    NO
    Grade
    chemical Composition
    C
    Si
    Mn
    1
    45
    0.42-0.50
    0.17-0.37
    0.50-0.80
    2
    50
    0.47-0.55
    3
    55
    0.52-0.60
    4
    60
    0.57-0.65
    5
    65
    0.62-0.70
    6
    70
    0.67-0.75
    7
    65Mn
    0.62-0.70
    0.90-1.20
    8
    72A
    0.70-0.75
    0.15-0.35
    0.30-0.60
    Quality mining wire mesh vibrating screen mesh for stone crusher Australia Market for sale
