High Security Wire Mesh 358 Fencing
358 Wire mesh fence also known as " PRISON MESH "or "358 security
fence", it is a special fencing panel. ‘358' comes from its
measurements 3" x 0.5" x 8 gauge which is approx. 76.2mm x 12.7mm x
4mm in metric. It is a professional structure designed combined
with an steel framework coated with zinc or RAL color powder.
358 security fences are extremely difficult to penetrate, with the
small mesh aperture being effectively finger proof, and extremely
difficult to attack using conventional hand tools. 358 fences are
recognized as one of the most difficult to break through the
barrier, because it is difficult to climb. It is called security
fencing and high- strength fencing. 358 security fencing panel can
be bent in part to enhance the aesthetic effect.
While 3510 Security Fencing has many of the attributes of 358
Security Fencing and its main strength is it's lighter. Using 3mm
wire instead of 4mm allows even better visibility allowing a wider
variety of applications. It’s lighter and cheaper so it's ideal for
commercial applications.
Features:
Anti-climb: More small openings, no toe or finger holds.
Anti-cut: robust wire and welded joints make cutting very
difficult.
High-strength: The superior welding technique and process control
create a stronger fusion between the wires.
Finish treatment: There are two treatment types: hot dipped galvanized and plastic
coated.
The colors of plastic coated are mainly green and black. Each color
is available according to your require.

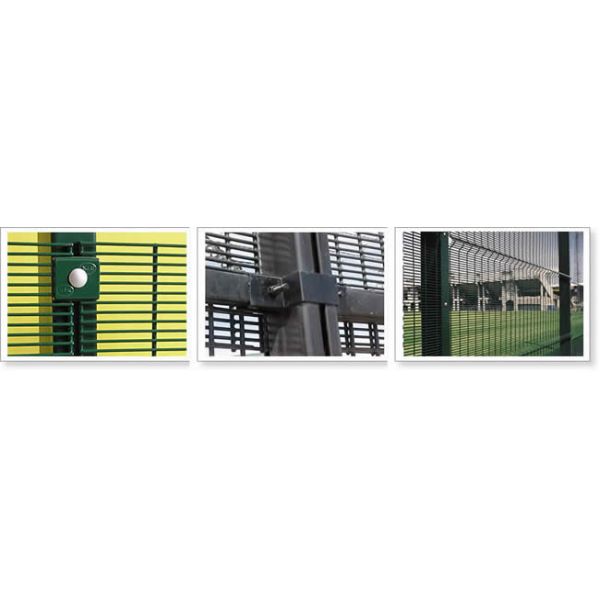

Connection type of host and fence panels, as follows:
Post type:
The post type is main square post. The feet are combined with
cement support with the rivet.
High Security 358 Fence Applications:
Bridge anti-climb guarding & guard safety screening
Psychiatric hospital security fencing
Prison security fencing
Factory machine guards
Walkway security fencing
Airport security fencing
Shipping Port Security fencing
Electrical sub-station fencing
Gas pipelines security fence
High security living area and private field fence.
Panels | Post |
Fence | Panel Size | Post Size | Post Height | Total Number of Fixings |
Height | Height/Width | Length/Width/Thickness | | Inters- 1 clamp | Corners-2 clamp |
m | mm | mm | mm | | |
2.0 | 2007 × 2515 | 60×60×2.5mm | 2700 | 7 | 14 |
2.4 | 2400 × 2515 | 60×60×2.5mm | 3100 | 9 | 18 |
3.0 | 2997 × 2515 | 80×80×2.5mm | 3800 | 11 | 22 |
3.3 | 3302 × 2515 | 80×80×2.5mm | 4200 | 12 | 24 |
3.6 | 3607 × 2515 | 100×60×3mm | 4500 | 13 | 26 |
3.6 | 3607 × 2515 | 100×100×3mm | 4500 | 13 | 26 |
4.2 | 4204 × 2515 | 100×100×4mm | 5200 | 15 | 30 |
4.5 | 4496 × 2515 | 100×100×5mm | 5500 | 16 | 32 |
5.2 | 5207 × 2515 | 120×120×5mm | 6200 | 18 | 36 |
358 Wire Fence is composed with quadrate post and high strength
welded wire fence;
358 Wire Fence has a strong erosion resistance and
anti-ultraviolet;
358 Wire Fence connected by screw flat bar, the installation is
very easy and convenient.
Wire Diameter | Mesh Size | Width | Height | Post Height | Post Type | Fitting |
3.0mm
3.5mm
4.0mm | 1/2"*3"
(12.7*76.2mm) | 2000mm
2200mm
2500mm | 1000mm
1200mm
1500mm
1800mm
2000mm
2200mm
2400mm
3000mm | 1400mm
1600mm
2000mm
2300mm
2500mm
2800mm
3000mm
3800mm | Model
No.XLFP-04 | Flat Plate |
Using high quality iron rod as raw material, the welded panel,
after galvanization, powders primer, and powders top coating, it
can resist the corrosive and ultraviolet radiation very strongly.
Surface Treatment | Min. | Max. |
Electric Gal. | 20/m2 | 60/m2 |
Hot dipped Gal. | 35g/m2 | 700g/m2 |
Powders Sprayed coating | 100 microns | 120 microns |
The design of anti-cutting has a strong body, can reduce the
destroy and anti-climbing.
3.Choice of colors:
Every RAL colour desired can be delivered, for example the colours
corresponding to your corporate design.
- Common colors
- Dark Green RAL6005
- Pure White RAL9010
- Stone Grey RAL7030
- Jet Black RAL9005
- Anthracite Grey RAL7016
- Other RAL colors are available
Power station, commonality construction, jail, airport, military
base, country border and other high security area and place.
Extra choose the angle steel, barbed wire or razor wire fence to
make more security.
