3D Fence Panels

• 3D fence panel
  • Materials: carbon steel wire, galvanized wire, stainless steel wire, other material available.
  • Wire diameter: 2–6.5 mm.
  • Spacing between vertical wires: 50 mm, 55 mm, 60 mm, 75 mm, 80 mm.
  • Spacing between horizontal wires: 50 mm, 100 mm, 150 mm, 200 mm.
  • Panel width: 1.5–4.0 m.
  • Panel height: 0.6–3.0 m.
  • "V" beams No.: Panels up to 0.9 m/1.2 m/1.8 m height have 2 "V" beams, 2.0 m/2.4 m height have 3 "V" beams.
  • Surface treatment: 3D fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
  • Colors: RAL 6005 green, RAL 9005 black, RAL 5010 blue, RAL 3000 red, RAL 9010 white. All RAL color is available.
  • Accessories: posts, post base feet, barbed wire, slotted clamp bars, post cap, bracket, bolts, spacer, nuts, washer, clips, etc.
• 3D fence posts:
  • Material: high grade steel for maximum strength and rigidity.
  • Post section (square and round): 40 × 40 mm, 50 × 50 mm, 60 × 60 mm, 70 × 70 mm, 38 mm, 40 mm, 42 mm.
  • Post Plate thickness: 1.0–3.0 mm.
  • Colors: same as panel.
  • Post cap: metal caps or plastic cap.
  • Metal clips and clamps are hot dip galvanized then powder coating in green or black color.

• Strength and rigidity: The heavy wire spanning the entire width in the middle of the "V" shaped beams added additional strength and rigidity.
• Modern design and attractive surface: The "V" shaped bending curves made the security fence attractive.
• Robust and sturdy panels structure: The unique welded workmanship will not made the panel sag or deform easily as common chain link fence.
• Fast installation: The panel shaped fence could be jointed together easily by joints to posts and decrease the workload, so as to be efficient, furthermore it is convenient for secondary use.
• Visibility: The security fencing protect against theft and vandalism in the meantime offered surveillance ability.
• Whether resistance: The galvanized carbon steel wire and PVC coating made the fencing panel resistant to hard weather.
• A long service life: The coating is applied over the entire panel and fence accessories, therefore guarantee a long life to serve.
• Suitable for both flat and level terrain: In stepped or slopped earth, extra V-braces would be offered for sturdiness.

3DSWWF-02: 3D security welded wire fence applied in a commercial sites, with PVC powder coating guarantees a long life to serve.

• Posts must be buried into earth, 0.5 m minimum to 1.2 m maximum.
• Several panels could be installed on the top of each other to achieve a higher height.
• Spacing between brackets in post would better be 0.3 m.
• A full installation guide is available upon request.

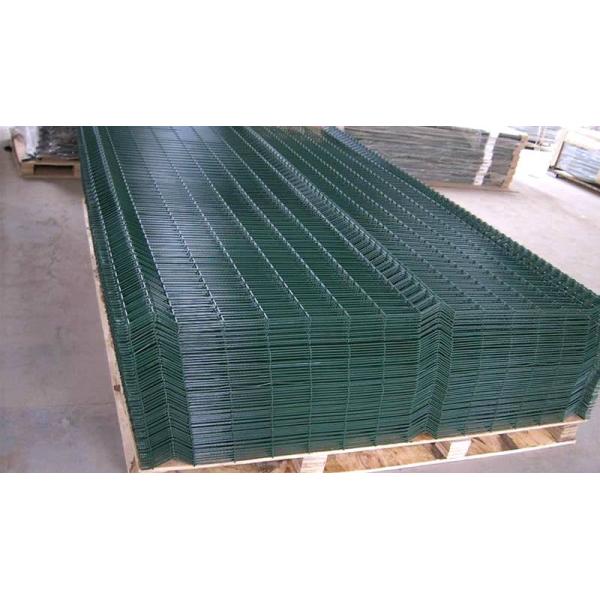

3DSWWF-03: 3D fence panels put on this pallet are waiting for envelopment and then delivery.

Packing

Packing is import for the products as the ship would be rough shaking during the sailing, which would make serious damage to the goods. Our panels are usually packing in wooden pallet . Posts are packing in bubble film with tape to fix it. All the clamps are packed into carbon boxes.

Also stell pallet and loading in bulk is available.
